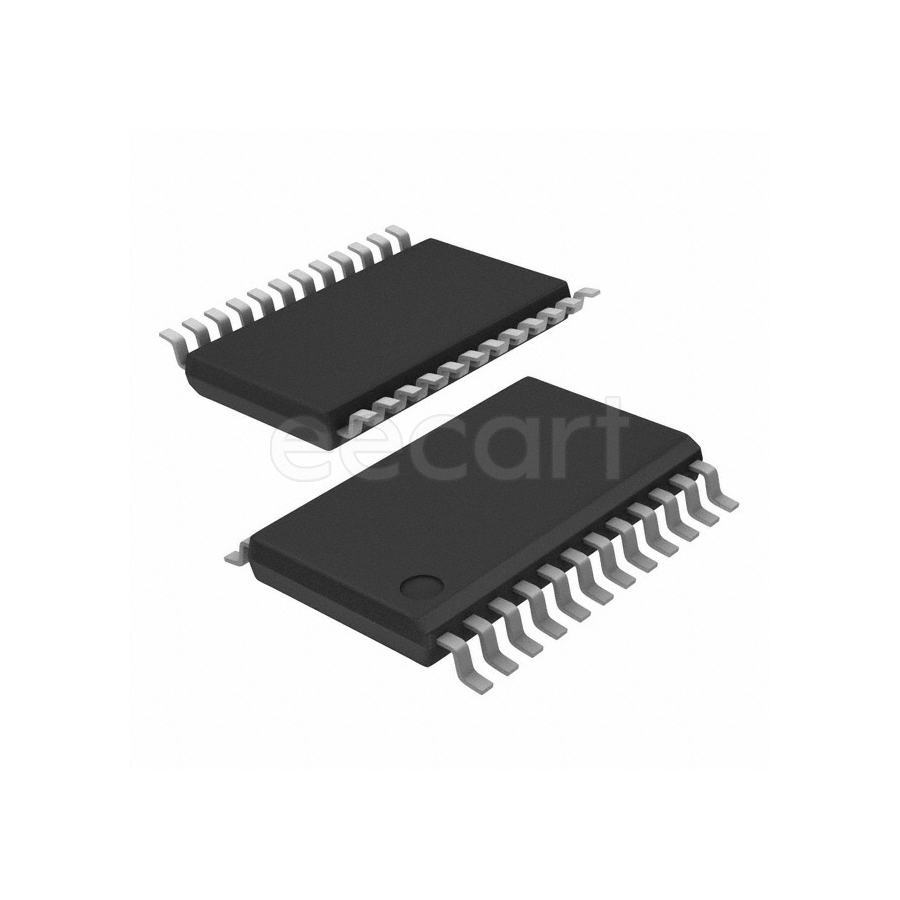

A3992SLPTR-T
Manufacturer:
Allegro Microsystems
Mfr.Part #:
A3992SLPTR-T
Datasheet:
Description:
Motor Drivers TSSOP-24 EP SMD/SMT Serial Load voltage:15 V to 50 V Half Bridge
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 24 |
| Height | 1.2 mm |
| Radiation Hardening | No |
| Output Current | 1.5 A |
| Output Voltage | 50 V |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 10.5 mA |
| Ambient Temperature Range High | 85 °C |
| Number of Outputs | 1 |
| Motor Type | Stepper |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8542390000 |
| Interface | Serial |
| RoHS | Compliant |
| Load Voltage | 15 V to 50 V |
| Motor Type - Stepper | Bipolar |
| Applications | General Purpose |
| Chemistry/Technology | DMOS |
| Step Resolution | 1 to 1/64 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Packaging | Reel |
| Output Configuration | Half Bridge |
Stock: 138
Distributors
pcbx
pcbxUnit Price$2.89231
Ext.Price$2.89231
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.89231 | $2.89231 |
| 10 | $2.45257 | $24.52570 |
| 25 | $2.26394 | $56.59850 |
| 50 | $2.08982 | $104.49100 |
| 100 | $1.92908 | $192.90800 |
| 300 | $1.86724 | $560.17200 |
| 500 | $1.80737 | $903.68500 |
| 1000 | $1.75240 | $1752.40000 |
